Stannah S3 Homelift

Stannah S3 Homelift

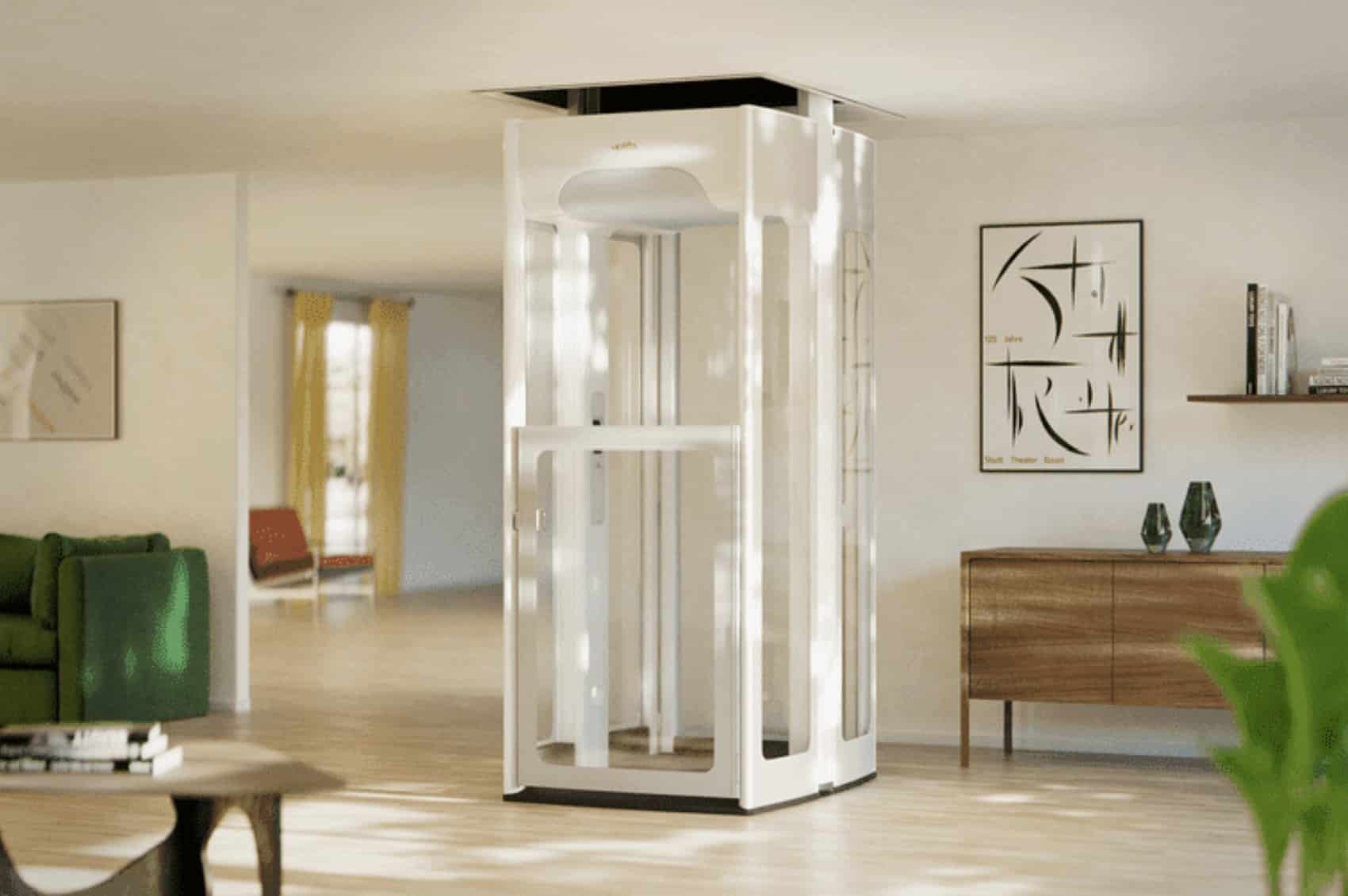

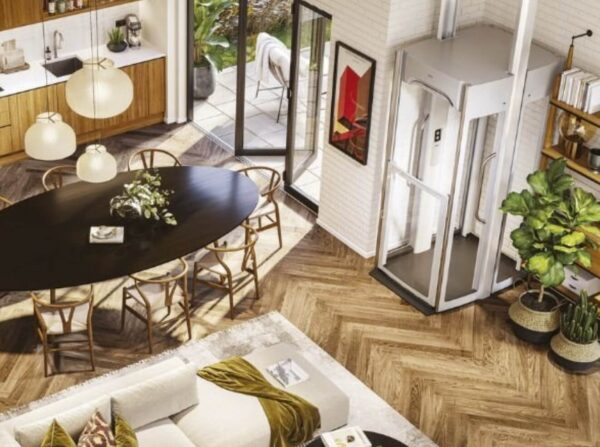

The Stannah S3 Homelift is a spacious through-floor home lift designed to carry up to three people standing or one wheelchair user between two floors. Its compact, self-supporting structure provides an accessible alternative to using the stairs while requiring no conventional lift shaft or ground-floor pit.

Wheelchair Accessible Home Lift

With an internal cabin footprint of approximately 770mm x 1140mm and an 800mm entrance, the S3 provides sufficient space for a wheelchair user. A low-level, non-slip integrated ramp helps provide straightforward entry and exit.

The S3 can also be specified with dual doors, allowing entry and exit from opposite sides where the property layout requires it.

Compact Through-Floor Installation

The maximum external cabin footprint is approximately 1010mm x 1220mm. Because the lift has a freestanding, self-supporting structure and self-contained electric drive system, it does not require supporting walls, a traditional lift shaft or a pit.

A compact version is available for properties with lower ceilings, reducing the minimum upper-floor ceiling height requirement from 2350mm to 2200mm.

Designed for Safe Everyday Use

The Stannah S3 includes safety edges that stop the lift if an obstruction is detected. Battery backup is also provided so that, if mains power is lost, the lift can return safely to the ground floor.

Operation is quiet at less than 50 decibels, helping the S3 fit comfortably into a domestic environment.

Key Stannah S3 Features

• Carries up to three standing passengers or one wheelchair user
• Travels between two floors
• Wheelchair-accessible cabin
• 800mm entrance width
• Low-level non-slip access ramp
• Optional dual-door configuration
• Self-supporting freestanding structure
• No conventional lift shaft required
• No ground-floor pit required
• Self-contained electric drive
• Battery backup system
• Safety obstruction sensors
• Standard and compact versions available
• Full two-year warranty

Accessible Living Between Floors

For anyone looking for a wheelchair home lift, domestic through-floor lift or an alternative to a stairlift, the Stannah S3 provides accessible travel between two levels without requiring the user to transfer from their wheelchair.

Its larger cabin also distinguishes it from the smaller Stannah S2, making the S3 suitable when wheelchair access or space for up to three standing passengers is required.
